Genuine PSA · Condenser, air conditioning
3644520

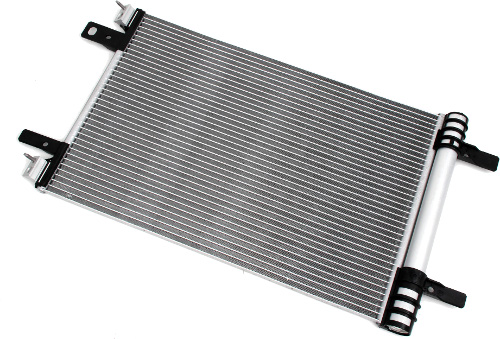

Condenser, air conditioning
Condenser 3644520 is a genuine PSA part. It fits 503 vehicle versions, including CITROËN BERLINGO, C4 and C5. Key specifications: supplementary article/additional information with nitrogen filling, further articles / further information 2 With a tumble dryer and further articles / further information 2 With sealing ring. Please note: this number has been superseded by 9816746580.
This number has been superseded by 9816746580.
| Brand | PSA (genuine) |
|---|---|
| Supplementary article/additional information | with nitrogen filling |
| Further articles / Further information 2 | With a tumble dryer |
| Further articles / Further information 2 | With sealing ring |
| Further articles / Further information 2 | With assembly instructions |
| Distance between fixing points on the left [mm] | 233 mm |
| Distance between fixing points on the right [mm] | 215 mm |
| Chemical properties | corrosion-resistant |
| Refrigerant | R 134a |
| Mesh width [mm] | 369 mm |
| Net depth [mm] | 12 mm |
| Net length [mm] | 531 mm |
| Total width [mm] | 369 mm |
| Total length [mm] | 563 mm |
| Outlet diameter [mm] | 11 mm |
| Exhaust diameter [mm] | 14,3 mm |
List price
€418.26 excl. VAT
Log in to the webshop to see your own net price and the current delivery time.
Cross-reference numbers
| 9673629780 | Citroen |
| 9816746580 | CITROËN |
| 1626267380 | CITROËN |
| 3552498 | OPEL |
| 9817275680 | CITROËN |
| SU001A4737 | TOYOTA |
| 9816746580A | PSA |
Aftermarket alternatives
Ask us about alternatives.
Fits
| CITROËN BERLINGO Bestelwagen/monovolume (K9) 1.5 BlueHDi 100 | 2018–present |
| CITROËN BERLINGO Bestelwagen/monovolume (K9) 1.5 BlueHDi 130 | 2018–present |
| CITROËN BERLINGO Bestelwagen/monovolume (K9) 1.5 BlueHDi 130 4x4 | 2018–present |
| CITROËN BERLINGO Bestelwagen/monovolume (K9) 1.6 BlueHDi 100 | 2018–2021 |
| CITROËN BERLINGO Bestelwagen/monovolume (K9) 1.6 BlueHDi 75 | 2018–2020 |
| CITROËN BERLINGO Bestelwagen/monovolume (K9) PureTech 110 | 2018–present |
| CITROËN BERLINGO Bestelwagen/monovolume (K9) 1.5 BlueHDi 75 | 2019–present |
| CITROËN BERLINGO Bestelwagen/monovolume (K9) PureTech 130 | 2019–present |
| CITROËN BERLINGO Bestelwagen/monovolume (K9) ë-BERLINGO | 2021–present |
| CITROËN BERLINGO Bestelwagen/monovolume (K9) ë-BERLINGO | 2023–present |
| CITROËN BERLINGO Bestelwagen/monovolume (K9) ë-BERLINGO 4x4 | 2025–present |
| CITROËN BERLINGO (ER_, EC_) 1.2 PureTech 110 | 2018–present |
All 503 vehicles
| CITROËN BERLINGO (ER_, EC_) 1.5 BlueHDi 100 | 2018–present |
| CITROËN BERLINGO (ER_, EC_) 1.5 BlueHDi 130 (ECYHZJ, ECYHZR) | 2018–present |
| CITROËN BERLINGO (ER_, EC_) 1.5 BlueHDi 75 | 2018–present |
| CITROËN BERLINGO (ER_, EC_) 1.6 HDi 92 | 2018–present |
| CITROËN BERLINGO (ER_, EC_) 1.2 PureTech 130 | 2019–present |
| CITROËN BERLINGO (ER_, EC_) ë-BERLINGO | 2021–present |
| CITROËN BERLINGO (ER_, EC_) ë-BERLINGO | 2023–present |
| CITROËN C4 GRAND PICASSO II (DA_, DE_) 2.0 BlueHDi 150 | 2013–present |
| CITROËN C4 GRAND PICASSO II (DA_, DE_) 1.6 HDi 90 | 2013–present |
| CITROËN C4 GRAND PICASSO II (DA_, DE_) 1.6 HDi / BlueHDi 115 | 2013–2018 |
| CITROËN C4 GRAND PICASSO II (DA_, DE_) 1.6 THP 155 | 2013–present |
| CITROËN C4 GRAND PICASSO II (DA_, DE_) 1.6 VTi 120 | 2013–present |
| CITROËN C4 GRAND PICASSO II (DA_, DE_) 2.0 BlueHDi 135 | 2013–present |
| CITROËN C4 GRAND PICASSO II (DA_, DE_) 1.2 THP 130 | 2014–present |
| CITROËN C4 GRAND PICASSO II (DA_, DE_) 1.6 BlueHDi 120 | 2014–2018 |
| CITROËN C4 GRAND PICASSO II (DA_, DE_) 1.6 THP 165 | 2014–present |
| CITROËN C4 GRAND PICASSO II (DA_, DE_) 1.6 BlueHDi 100 | 2015–2016 |
| CITROËN C4 PICASSO II 1.6 HDi 90 | 2013–present |
| CITROËN C4 PICASSO II 1.6 HDi / BlueHDi 115 | 2013–2018 |
| CITROËN C4 PICASSO II 1.6 THP 155 | 2013–present |
| CITROËN C4 PICASSO II 1.6 VTi 120 | 2013–present |
| CITROËN C4 PICASSO II 2.0 BlueHDi 135 | 2013–present |
| CITROËN C4 PICASSO II 2.0 BlueHDi 150 | 2013–present |
| CITROËN C4 PICASSO II 1.2 THP 130 | 2014–present |
| CITROËN C4 PICASSO II 1.6 BlueHDi 120 | 2014–2018 |
| CITROËN C4 PICASSO II 1.6 THP 165 | 2014–present |
| CITROËN C4 PICASSO II 1.6 BlueHDi 100 | 2014–2018 |
| CITROËN C4 PICASSO II 1.2 THP 110 | 2016–present |
| CITROËN C4 PICASSO II Van (DD_) e-HDi (DD9HC8, DD9HCT) | 2013–present |
| CITROËN C4 PICASSO II Van (DD_) HDi / e-HDi (DD9HP0, DD9HPT) | 2013–present |
| CITROËN C4 PICASSO II Van (DD_) THP 155 (DD5FV8) | 2013–present |
| CITROËN C4 PICASSO II Van (DD_) VTi 120 (DD5FS0) | 2013–present |
| CITROËN C4 PICASSO II Van (DD_) BlueHDi 150 (DDAHXT) | 2013–present |
| CITROËN C4 SPACETOURER (3D_) 1.2 PureTech 110 | 2018–present |
| CITROËN C4 SPACETOURER (3D_) 1.2 PureTech 130 | 2018–present |
| CITROËN C4 SPACETOURER (3D_) 1.6 BlueHDi 100 | 2018–2019 |
| CITROËN C4 SPACETOURER (3D_) 1.6 BlueHDi 120 | 2018–2019 |
| CITROËN C4 SPACETOURER (3D_) 1.6 THP 165 | 2018–present |
| CITROËN C4 SPACETOURER (3D_) 2.0 BlueHDi 150 | 2018–present |
| CITROËN C4 SPACETOURER (3D_) 2.0 BlueHDi 160 | 2018–present |
| CITROËN C4 SPACETOURER (3D_) 1.5 BlueHDi 130 | 2018–present |
| CITROËN C4 SPACETOURER Van (3D_) BlueHDi 120 | 2019–present |
| CITROËN C4 SPACETOURER Van (3D_) BlueHDi 130 | 2019–present |
| CITROËN C4 SPACETOURER Van (3D_) PureTech 130 | 2019–present |
| CITROËN C5 AIRCROSS (AC_, AJ_, AR_, A4_) 1.2 PureTech 130 (ARHNSJ) | 2018–present |
| CITROËN C5 AIRCROSS (AC_, AJ_, AR_, A4_) 1.5 BlueHDi 130 (ACYHZJ, ACYHZR) | 2018–present |
| CITROËN C5 AIRCROSS (AC_, AJ_, AR_, A4_) 1.6 PureTech 180 (A45GFR) | 2018–present |
| CITROËN C5 AIRCROSS (AC_, AJ_, AR_, A4_) 2.0 BlueHDi 180 (AJEHZR) | 2018–present |
| CITROËN C5 AIRCROSS (AC_, AJ_, AR_, A4_) 1.6 THP 165 (A45GYJ) | 2019–present |
| CITROËN C5 AIRCROSS (AC_, AJ_, AR_, A4_) 1.6 THP 150 (A45GXJ) | 2019–present |
| CITROËN GRAND C4 SPACETOURER (3A_, 3E_) 1.2 PureTech 130 | 2018–present |
| CITROËN GRAND C4 SPACETOURER (3A_, 3E_) 1.6 BlueHDi 100 | 2018–2019 |
| CITROËN GRAND C4 SPACETOURER (3A_, 3E_) 1.6 BlueHDi 120 | 2018–2018 |
| CITROËN GRAND C4 SPACETOURER (3A_, 3E_) 1.6 HDi 115 | 2018–present |
| CITROËN GRAND C4 SPACETOURER (3A_, 3E_) 1.6 PureTech 180 | 2018–present |
| CITROËN GRAND C4 SPACETOURER (3A_, 3E_) 1.6 THP 165 | 2018–present |
| CITROËN GRAND C4 SPACETOURER (3A_, 3E_) 1.6 THP 165 | 2018–present |
| CITROËN GRAND C4 SPACETOURER (3A_, 3E_) 2.0 BlueHDi 150 | 2018–present |
| CITROËN GRAND C4 SPACETOURER (3A_, 3E_) 2.0 BlueHDi 160 | 2018–present |
| CITROËN GRAND C4 SPACETOURER (3A_, 3E_) 1.5 BlueHDi 130 | 2018–present |
| CITROËN GRAND C4 SPACETOURER Van (3A_, 3E_) BlueHDi 130 | 2019–present |
| CITROËN GRAND C4 SPACETOURER Van (3A_, 3E_) BlueHDi 160 | 2019–present |
| CITROËN GRAND C4 SPACETOURER Van (3A_, 3E_) PureTech 130 | 2019–present |
| CITROËN JUMPY III Bestelwagen (V_) 1.6 BlueHDi 115 | 2016–2022 |
| CITROËN JUMPY III Bestelwagen (V_) 1.6 BlueHDi 95 | 2016–2020 |
| CITROËN JUMPY III Bestelwagen (V_) 2.0 BlueHDi 120 | 2016–2022 |
| CITROËN JUMPY III Bestelwagen (V_) 2.0 BlueHDi 120 4x4 | 2016–2022 |
| CITROËN JUMPY III Bestelwagen (V_) 2.0 BlueHDi 150 | 2016–2022 |
| CITROËN JUMPY III Bestelwagen (V_) 2.0 BlueHDi 150 4x4 | 2016–2022 |
| CITROËN JUMPY III Bestelwagen (V_) 2.0 BlueHDi 180 | 2016–2025 |
| CITROËN JUMPY III Bestelwagen (V_) 1.5 BlueHDi 100 | 2018–2025 |
| CITROËN JUMPY III Bestelwagen (V_) 1.5 BlueHDi 120 | 2018–present |
| CITROËN JUMPY III Bestelwagen (V_) 1.6 BlueHDi 90 | 2018–present |
| CITROËN JUMPY III Bestelwagen (V_) ë-JUMPY | 2020–present |
| CITROËN JUMPY III Bestelwagen (V_) 2.0 BlueHDi 145 | 2021–2025 |
| CITROËN JUMPY III Bestelwagen (V_) 2.0 BlueHDi 145 4x4 | 2022–2025 |
| CITROËN JUMPY III Bestelwagen (V_) ë-JUMPY | 2023–present |
| CITROËN JUMPY III Bestelwagen (V_) ë-JUMPY HYDROGEN | 2024–present |
| CITROËN JUMPY III Bestelwagen (V_) ë-JUMPY 4x4 | 2025–present |
| CITROËN JUMPY III Bestelwagen (V_) 2.2 BlueHDi 150 | 2025–present |
| CITROËN JUMPY III Bestelwagen (V_) 2.2 BlueHDi 180 | 2025–present |
| CITROËN JUMPY III Bus (V_) 1.6 BlueHDi 115 | 2016–2022 |
| CITROËN JUMPY III Bus (V_) 1.6 BlueHDi 95 | 2016–present |
| CITROËN JUMPY III Bus (V_) 2.0 BlueHDi 120 | 2016–2022 |
| CITROËN JUMPY III Bus (V_) 2.0 BlueHDi 150 | 2016–2022 |
| CITROËN JUMPY III Bus (V_) 2.0 BlueHDi 180 | 2016–2025 |
| CITROËN JUMPY III Bus (V_) 1.5 BlueHDi 100 | 2018–2025 |
| CITROËN JUMPY III Bus (V_) 1.5 BlueHDi 120 | 2018–2025 |
And 403 more versions. Search by registration number in the webshop.
