Genuine PSA · Brake drum
424748

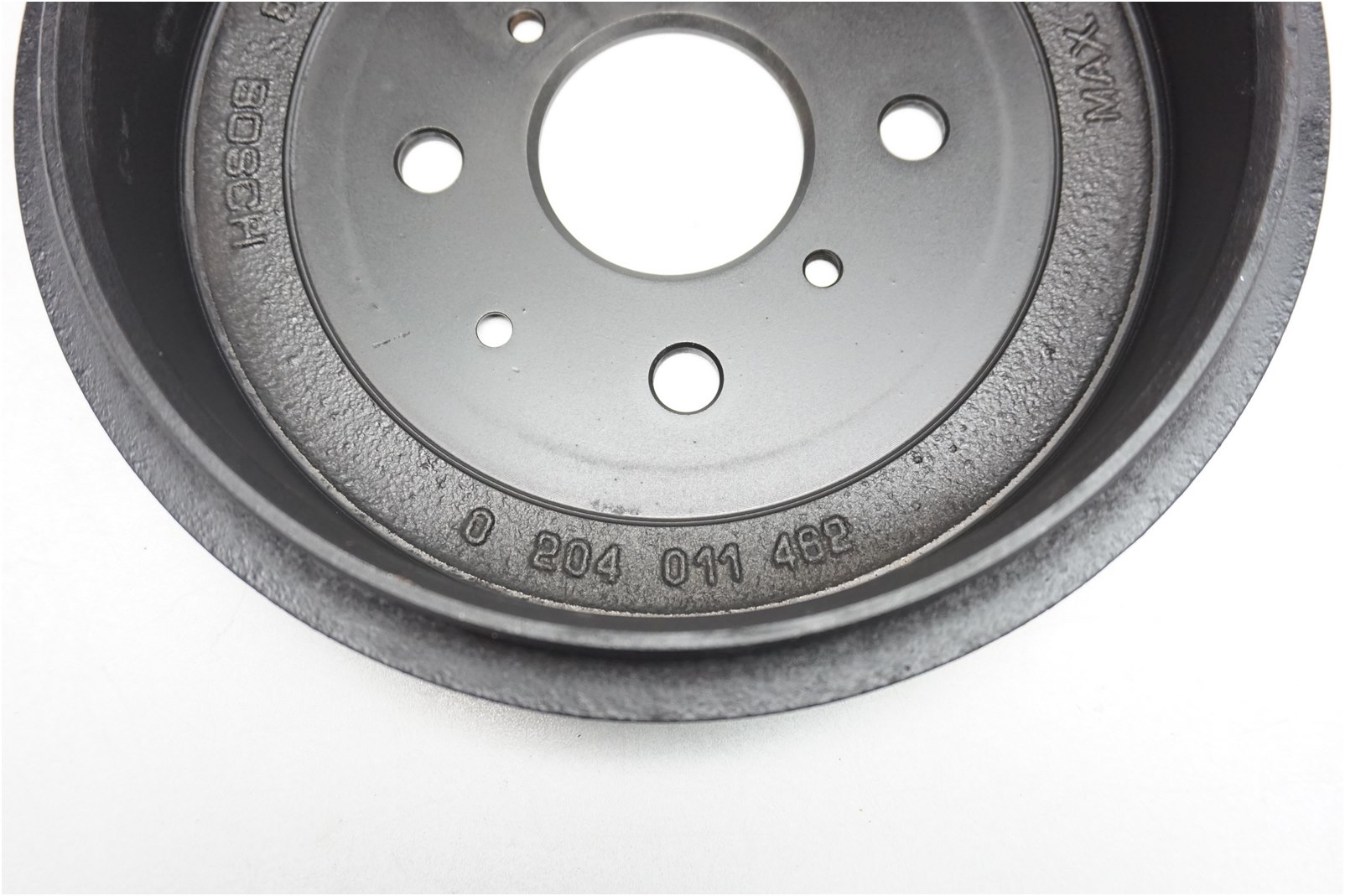

Brake drum
Brake drum 424748 is a genuine PSA part. It fits 27 vehicle versions, including CITROËN C1; PEUGEOT 107 and 108; SUZUKI SPLASH and SWIFT. Key specifications: inner brake drum diameter [mm] 200 mm, outer brake drum diameter [mm] 233 mm and centring diameter [mm] 55 mm. Brake drums are replaced per axle, left and right together. Besides the genuine part, we supply one alternative from ASHUKI BY PALIDIUM.
| Brand | PSA (genuine) |
|---|---|
| Number of holes | 4 |
| Centring diameter [mm] | 55 mm |
| Installation location | Rear axle |
| Inner brake drum diameter [mm] | 200 mm |
| Outer brake drum diameter [mm] | 233 mm |
| Internal brake drum height [mm] | 44 mm |
| Total brake drum height [mm] | 53,5 mm |
| Wheel bolt pitch [mm] | 100 mm |
List price
€192.91 excl. VAT
Log in to the webshop to see your own net price and the current delivery time.
Cross-reference numbers
| 424310H010 | TOYOTA |
| 4351162J10 | SUZUKI |
| 4351162J10000 | SUZUKI |
Aftermarket alternatives
| ASHUKI BY PALIDIUM | 5067693 |
Fits
| CITROËN C1 II (PA_, PS_) 1.0 VTi 68 | 2014–2018 |
| CITROËN C1 II (PA_, PS_) 1.2 VTi 82 | 2014–2018 |
| CITROËN C1 II (PA_, PS_) 1.0 VTi 72 | 2018–2021 |
| CITROËN C1 (PM_, PN_) 1.0 | 2005–2014 |
| CITROËN C1 (PM_, PN_) 1.4 HDi | 2005–2014 |
| PEUGEOT 107 (PM_, PN_) 1.0 | 2005–2014 |
| PEUGEOT 107 (PM_, PN_) 1.4 HDi | 2005–2014 |
| PEUGEOT 108 1.0 VTi | 2014–present |
| PEUGEOT 108 1.2 | 2014–present |
| PEUGEOT 108 1.0 VTi 72 | 2018–present |
| SUZUKI SPLASH (EX) 1.0 (A5B310) | 2008–present |
| SUZUKI SPLASH (EX) 1.2 (A5B412) | 2008–present |
All 27 vehicles
| SUZUKI SPLASH (EX) 1.3 CDTI (A5B413D) | 2008–present |
| SUZUKI SPLASH (EX) 1.2 VVT (A5B412) | 2010–present |
| SUZUKI SPLASH (EX) 1.0 (A5B310) | 2011–present |
| SUZUKI SPLASH (EX) 1.2 VVT (A5B412) | 2011–present |
| SUZUKI SWIFT III (MZ, EZ) 1.3 (RS413, ZC11S) | 2005–2012 |
| SUZUKI SWIFT III (MZ, EZ) 1.5 (RS415, ZC21S) | 2005–2011 |
| SUZUKI SWIFT III (MZ, EZ) 1.3 DDiS (RS413D) | 2005–2012 |
| SUZUKI SWIFT III (MZ, EZ) 1.3 DDiS (RS413D) | 2005–2011 |
| SUZUKI SWIFT III (MZ, EZ) 1.3 LPG (RS 413) | 2008–2010 |
| TOYOTA AYGO (_B1_) 1.0 GPL (KGB10_) | 2005–2014 |
| TOYOTA AYGO (_B1_) 1.0 (KGB10_, KGB10R) | 2005–2014 |
| TOYOTA AYGO (_B1_) 1.4 D-4D (WNB10_, WNB10R) | 2005–2010 |
| TOYOTA AYGO (_B4_) 1.0 (KGB40) | 2014–present |
| TOYOTA AYGO (_B4_) 1.2 (PAB40) | 2014–present |
| TOYOTA AYGO Bestelwagen/hatchback (_B1_) 1.0 VVTi (KGB10) | 2005–2014 |
