Genuine PSA · Chassis spring

5002TH

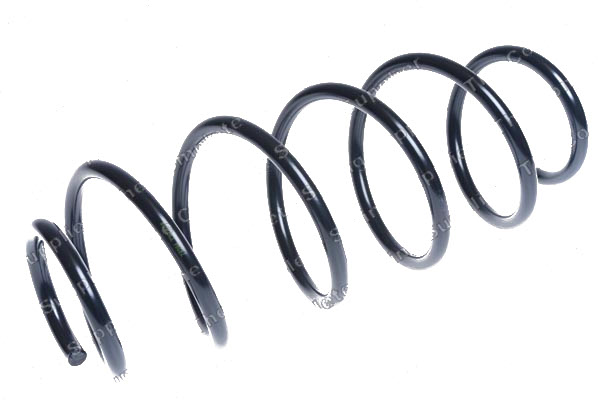

Chassis spring

Chassis spring 5002TH is a genuine PSA part. It fits 20 vehicle versions, including CITROËN DS4; DS DS; PEUGEOT 3008, 308 and 5008. Key specifications: length [mm] 401 mm, number of turns 6 and supplementary article/additional information with sleeve. Springs are replaced per axle, left and right together.

Specifications
Brand	PSA (genuine)
Number of turns	6
Supplementary article/additional information	with sleeve
Outer diameter [mm]	151 mm
Wire diameter [mm]	12,5 mm
Weight [kg]	2,35 kg
Installation location	Front axle
Length [mm]	401 mm
Spring shape	Constant-diameter coil spring

List price

€146.49 excl. VAT

Cross-reference numbers

No cross-reference numbers known.

Aftermarket alternatives

Ask us about alternatives.

Fits

CITROËN DS4 (NX_) 1.6 THP 165	2012–2015
CITROËN DS4 (NX_) 1.6 THP 160	2012–2015
DS DS 4 / DS 4 CROSSBACK (NX_) 1.6 THP 165	2015–2018
PEUGEOT 3008 I Monovolume (0U_) 1.6 HDi	2009–2016
PEUGEOT 3008 I Monovolume (0U_) 1.6 THP	2009–2016
PEUGEOT 3008 I Monovolume (0U_) 1.6 THP	2009–2016
PEUGEOT 3008 I Monovolume (0U_) 1.6 HDi	2009–2016
PEUGEOT 3008 I Monovolume (0U_) 1.6 HDi	2013–2016
PEUGEOT 3008 I Monovolume (0U_) 1.6 BlueHDi 120	2014–2016
PEUGEOT 308 I (4A_, 4C_) 1.6 16V	2007–2014
PEUGEOT 308 I (4A_, 4C_) 1.6 16V	2007–2014
PEUGEOT 308 I (4A_, 4C_) 1.6 HDi	2007–2014

All 20 vehicles

PEUGEOT 308 I (4A_, 4C_) 1.6 HDi	2009–2014
PEUGEOT 5008 (0U_, 0E_) 1.6 16V	2009–2017
PEUGEOT 5008 (0U_, 0E_) 1.6 HDi	2009–2017
PEUGEOT 5008 (0U_, 0E_) 1.6 HDi	2010–2017
PEUGEOT 5008 (0U_, 0E_) 1.6 THP 163	2012–2017
PEUGEOT 5008 (0U_, 0E_) 1.6 THP 165	2012–2017
PEUGEOT 5008 (0U_, 0E_) 1.6 HDi	2013–2017
PEUGEOT 5008 (0U_, 0E_) 1.6 BlueHDi 120	2014–2017
