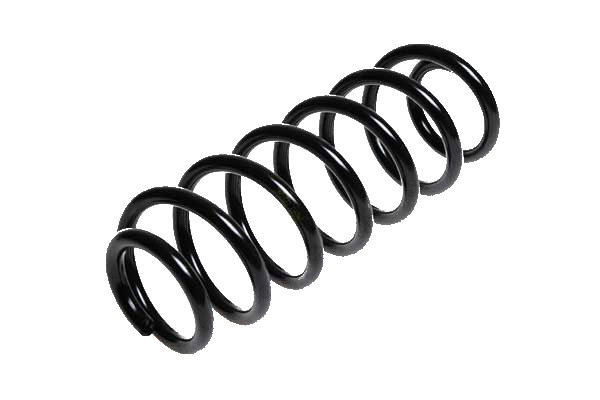

Chassis spring 5102V6

Genuine PSA · Chassis spring

5102V6

Chassis spring

Chassis spring 5102V6 is a genuine PSA part. It fits 36 vehicle versions, including PEUGEOT 307 and 308; Niet in. Key specifications: length [mm] 309 mm, number of turns 7,8 and outer diameter [mm] 110 mm. Springs are replaced per axle, left and right together.

Specifications
BrandPSA (genuine)
Number of turns7,8
Outer diameter [mm]110 mm
Commercial warranty3-year manufacturer’s warranty
Wire diameter [mm]11,8 mm
Installation locationRear axle
Length [mm]309 mm

List price

€168.53 excl. VAT

Log in to the webshop to see your own net price and the current delivery time.

View in the webshop Send a request

Cross-reference numbers

5102H3PEUGEOT
5102H6CITROËN
5102V8PSA

Aftermarket alternatives

Ask us about alternatives.

Fits

PEUGEOT 307 Break (3E) 1.4 HDi2002–2005
PEUGEOT 307 Break (3E) 1.6 16V2002–2008
PEUGEOT 307 Break (3E) 2.02002–2005
PEUGEOT 307 Break (3E) 2.0 HDI 1102002–2009
PEUGEOT 307 Break (3E) 2.0 HDI 902002–2008
PEUGEOT 307 Break (3E) 1.42002–2003
PEUGEOT 307 Break (3E) 1.4 16V2003–2007
PEUGEOT 307 Break (3E) 1.6 HDi 1102004–2008
PEUGEOT 307 Break (3E) 2.0 HDi 1352004–2008
PEUGEOT 307 Break (3E) 2.0 16V2005–2008
PEUGEOT 307 Break (3E) 1.6 HDi2005–2008
PEUGEOT 307 CC (3B) 2.0 16V2003–2005
All 36 vehicles
PEUGEOT 307 CC (3B) 2.0 16V2003–2009
PEUGEOT 307 CC (3B) 1.6 16V2004–2009
PEUGEOT 307 CC (3B) 2.0 16V2004–2009
PEUGEOT 307 CC (3B) 2.0 HDi 1352005–2009
PEUGEOT 307 SW (3H) 1.6 16V2002–2008
PEUGEOT 307 SW (3H) 2.0 16V2002–2005
PEUGEOT 307 SW (3H) 2.0 HDI 1102002–2009
PEUGEOT 307 SW (3H) 2.0 HDI 902002–2008
PEUGEOT 307 SW (3H) 1.42002–2003
PEUGEOT 307 SW (3H) 1.4 16V2003–2007
PEUGEOT 307 SW (3H) 1.6 HDI 1102003–2007
PEUGEOT 307 SW (3H) 2.0 HDi 1352004–2008
PEUGEOT 307 SW (3H) 2.0 16V2005–2008
PEUGEOT 307 SW (3H) 1.6 HDI 902005–2008
PEUGEOT 308 CC (4B_) 2.0 HDi2009–2012
PEUGEOT 308 CC (4B_) 2.0 HDi (4BRHRH, 4BRHRJ)2009–2014
PEUGEOT 308 CC (4B_) 1.6 16V2009–2014
PEUGEOT 308 CC (4B_) 1.6 16V2009–2014
PEUGEOT 308 CC (4B_) 1.6 16V2009–2014
PEUGEOT 308 CC (4B_) 1.6 16V2009–2014
PEUGEOT 308 CC (4B_) 1.6 HDi2009–2014
PEUGEOT 308 CC (4B_) 2.0 HDi2009–2014
PEUGEOT 308 CC (4B_) 1.6 THP2010–2014
Niet in TecDoc: KType 18775
