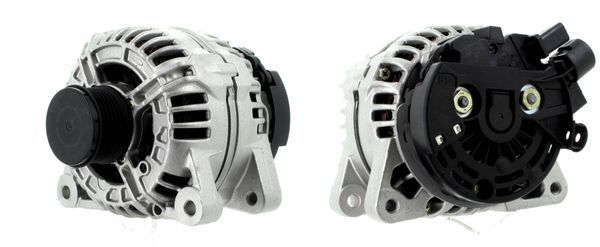

Dynamo / Alternator 5705AS
Photo: RUIJGROK 1194711 (alternative)

Genuine PSA · Dynamo / Alternator

5705AS

Dynamo / Alternator

Dynamo / Alternator 5705AS is a genuine PSA part. It fits 539 vehicle versions, including BMW 1502-2002 and 3; CITROËN BERLINGO, C1 and C2. Key specifications: recommended essential repairs V-belt/Poly V-belt, number of grooves 6 and distance between the pulley and the alternator [mm] 42,6 mm. Please note: this number has been superseded by 5705NH. Besides the genuine part, we supply one alternative from RUIJGROK.

This number has been superseded by 5705NH.

Specifications
BrandPSA (genuine)
Recommended essential repairsV-belt/Poly V-belt
Number of grooves6
Distance between the pulley and the alternator [mm]42,6 mm
Method of attachmentDouble swing arm
Direction of rotationClockwise direction of rotation
Dynamo versionExcluding vacuum pump
ClampL
ClampB+(M8)
Charging current [A]150 A
Length [mm]180 mm
Belt pulley diameter [mm]54,3 mm
Belt pulleysWith a freewheel pulley
Voltage [V]14 V
Plug type IDPL324

List price

€688.95 excl. VAT

Log in to the webshop to see your own net price and the current delivery time.

View in the webshop Send a request

Cross-reference numbers

5702E3CITROËN
5705EYCITROËN
9646065480FIAT
9646321780FIAT
9646321880FIAT
5705NHCITROËN
71733552FIAT
96463218CITROËN
5702C2CITROËN
5702E1CITROËN
5702E2CITROËN
5705AGCITROËN
All 40 cross-reference numbers
5705ARCITROËN
5705EXCITROËN
71732307FIAT
9644103580FIAT
9650358580FIAT
9644037180FIAT
K9644037180FIAT
K9644103580FIAT
K9646065480FIAT
K9646321780FIAT
K9646321880FIAT
K9650358580FIAT
5702K9CITROËN
9646065488FIAT
1606856980CITROËN
1606859180CITROËN
1608064580CITROËN
1609016080CITROËN
1609957280CITROËN
1611422880CITROËN
1619607980CITROËN
1624230480CITROËN
1637302780CITROËN
1637302880CITROËN
1648232180CITROËN
1675460180CITROËN
212000972CITROËN
2610711BCITROËN

Aftermarket alternatives

RUIJGROK1194711

Fits

BMW 1502-2002 (E10) 20021968–1975
BMW 1502-2002 (E10) 2002 Turbo1974–1975
BMW 3 (E21) 320 i1975–1982
CITROËN BERLINGO / BERLINGO FIRST Bestelwagen/monovolume (M_) 1.9 D 70 4WD (MBWJZ, MCWJZ)1998–2006
CITROËN BERLINGO / BERLINGO FIRST Bestelwagen/monovolume (M_) 1.9 D 70 (MBWJZ, MCWJZ)1999–2011
CITROËN BERLINGO / BERLINGO FIRST Bestelwagen/monovolume (M_) 2.0 HDI 90 (MBRHY, MCRHY)1999–2011
CITROËN BERLINGO / BERLINGO FIRST Bestelwagen/monovolume (M_) 2.0 HDI 90 4WD (MBRHY, MCRHY)2000–2005
CITROËN BERLINGO / BERLINGO FIRST Bestelwagen/monovolume (M_) 1.6 HDI 75 (MB9HW)2005–2011
CITROËN BERLINGO / BERLINGO FIRST Bestelwagen/monovolume (M_) 1.6 HDI 90 (MB9HX, MC9HX)2005–2011
CITROËN BERLINGO / BERLINGO FIRST Bestelwagen/monovolume (M_) 1.6 HDI 922009–2010
CITROËN BERLINGO / BERLINGO FIRST Monovolume (MF_, GJK_, GFK_) 1.9 D 4WD (MFWJZ)1998–2005
CITROËN BERLINGO / BERLINGO FIRST Monovolume (MF_, GJK_, GFK_) 1.9 D (MFWJZ)1998–2005
All 539 vehicles
CITROËN BERLINGO / BERLINGO FIRST Monovolume (MF_, GJK_, GFK_) 2.0 HDI 90 (MFRHY)1999–2005
CITROËN BERLINGO / BERLINGO FIRST Monovolume (MF_, GJK_, GFK_) 1.6 HDI 75 (MF9HW, GJ9HWC, GF9HWC, GN9HWC)2005–2011
CITROËN BERLINGO / BERLINGO FIRST Monovolume (MF_, GJK_, GFK_) 1.6 HDI 90 (MF9HX)2005–2008
CITROËN BERLINGO / BERLINGO FIRST Monovolume (MF_, GJK_, GFK_) 1.6 HDI 922009–2010
CITROËN BERLINGO Bestelwagen/monovolume (B9) 1.6 HDi 1102008–2018
CITROËN BERLINGO Bestelwagen/monovolume (B9) 1.6 HDi 752008–2018
CITROËN BERLINGO Bestelwagen/monovolume (B9) 1.6 HDi 90 16V2008–2018
CITROËN BERLINGO Bestelwagen/monovolume (B9) 1.6 HDi 902010–2018
CITROËN BERLINGO MULTISPACE (B9) 1.6 HDi 1102008–2018
CITROËN BERLINGO MULTISPACE (B9) 1.6 HDi 75 16V2008–2018
CITROËN BERLINGO MULTISPACE (B9) 1.6 HDi 902008–2018
CITROËN BERLINGO MULTISPACE (B9) 1.6 HDi 902010–2018
CITROËN BERLINGO Open laadbak/ Chassis (B9) 1.6 HDi 90 16V2008–2018
CITROËN C1 (PM_, PN_) 1.4 HDi2005–2014
CITROËN C2 ENTERPRISE (JG_) 1.4 HDi2003–2005
CITROËN C2 ENTERPRISE (JG_) 1.4 HDi2006–2009
CITROËN C2 (JM_) 1.4 HDi2003–2009
CITROËN C2 (JM_) 1.6 HDi2005–2009
CITROËN C3 I (FC_, FN_) 1.4 16V HDi2002–2008
CITROËN C3 I (FC_, FN_) 1.4 HDi2002–2009
CITROËN C3 I (FC_, FN_) 1.4 HDi2005–2009
CITROËN C3 I (FC_, FN_) 1.6 16V HDi2005–2009
CITROËN C3 I (FC_, FN_) 1.6 16V HDi2005–2009
CITROËN C3 II (SC_) 1.4 HDi 70 (SC8HZC, SC8HR0, SC8HP4)2009–2016
CITROËN C3 II (SC_) 1.6 HDi2009–2016
CITROËN C3 II (SC_) 1.6 HDi 902009–2016
CITROËN C3 PICASSO (SH_) 1.6 HDi2009–2010
CITROËN C3 PICASSO (SH_) 1.6 HDi2009–2015
CITROËN C3 Pluriel (HB_) 1.4 HDi2004–present
CITROËN C4 Coupé (LA_) 1.6 HDi2004–2011
CITROËN C4 Coupé (LA_) 1.6 HDi2004–2011
CITROËN C4 Coupé (LA_) 2.0 HDi2004–2010
CITROËN C4 Coupé (LA_) 2.0 HDi2008–2011
CITROËN C4 GRAND PICASSO I (UA_) 1.6 HDi2006–2011
CITROËN C4 GRAND PICASSO I (UA_) 2.0 HDi 1382006–2013
CITROËN C4 GRAND PICASSO I (UA_) 1.6 HDi 1102010–2013
CITROËN C4 I Bestelwagen/hatchback (LR_) 2.0 HDi2005–2010
CITROËN C4 II (NC_) 1.6 HDi 1102009–present
CITROËN C4 II (NC_) 1.6 HDi 902009–present
CITROËN C4 I (LC_) 1.6 HDi2004–2011
CITROËN C4 I (LC_) 1.6 HDi2004–2011
CITROËN C4 I (LC_) 2.0 HDi2004–2011
CITROËN C4 I (LC_) 2.0 HDi2007–2008
CITROËN C4 I (LC_) 2.0 HDi2008–2011
CITROËN C4 I Sedan 1.6 HDi2006–2011
CITROËN C4 PICASSO I Monovolume (UD_) 2.0 HDi 1382006–2013
CITROËN C4 PICASSO I Monovolume (UD_) 1.6 HDi2007–2013
CITROËN C4 PICASSO I Monovolume (UD_) 1.6 HDi 1102010–2013
CITROËN C5 I Bestelwagen/Bus (DE_) 2.0 HDi (DERHSE, DERHSB)2002–2004
CITROËN C5 I Bestelwagen/Bus (DE_) 2.0 HDi (DERHYB)2002–2004
CITROËN C5 I Bestelwagen/Bus (DE_) 2.0 HDi (DERHZB, DERHZE)2002–2004
CITROËN C5 I Bestelwagen/Bus (DE_) 2.2 HDi (DE4HXB, DE4HXF)2002–2004
CITROËN C5 I Break (DE_) 1.8 16V (DE6FZB, DE6FZE)2001–2004
CITROËN C5 I Break (DE_) 2.0 16V (DERFNF, DERFNC, RERFNC)2001–2004
CITROËN C5 I Break (DE_) 2.0 16V HPi (DERLZB)2001–2004
CITROËN C5 I Break (DE_) 2.0 HDi (DERHSB, DERHSE)2001–2004
CITROËN C5 I Break (DE_) 2.0 HDi (DERHYB)2001–2004
CITROËN C5 I Break (DE_) 2.0 HDi (DERHZB, DERHZE)2001–2004
CITROËN C5 I Break (DE_) 2.2 HDi (DE4HXB, DE4HXE)2001–2004
CITROËN C5 I (DC_) 1.8 16V (DC6FZB, DC6FZE)2001–2004
CITROËN C5 I (DC_) 2.0 16V (DCRFNC, DCRFNF)2001–2004
CITROËN C5 I (DC_) 2.0 16V HPi (DCRLZB)2001–2004
CITROËN C5 I (DC_) 2.0 HDi2001–2004
CITROËN C5 I (DC_) 2.0 HDi (DCRHYB)2001–2004
CITROËN C5 I (DC_) 2.0 HDi (DCRHZB, DCRHZE)2001–2004
CITROËN C5 I (DC_) 2.2 HDi (DC4HXB, DC4HXE)2001–2004
CITROËN C5 II Bestelwagen/Bus (RE_) 1.6 HDi (RE9HYB, RE9HZB)2004–2008
CITROËN C5 II Bestelwagen/Bus (RE_) 1.8 16V (RE6FZB)2004–2005
CITROËN C5 II Bestelwagen/Bus (RE_) 2.0 HDi (RERHRH)2004–2008
CITROËN C5 II Break (RE_) 1.6 HDi (RE9HZC, RE9HYB)2004–2008
CITROËN C5 II Break (RE_) 1.8 16V (RE6FZB)2004–2005
CITROËN C5 II Break (RE_) 2.0 HDi (RERHRH)2004–2008
CITROËN C5 II Break (RE_) 2.2 HDi (RE4HXE)2004–2006
CITROËN C5 II Break (RE_) 2.2 HDi (RE4HTE, RE4HT2)2006–2008
CITROËN C5 II Break (RE_) 2.2 HDi (RE4HPE, RE4HP2, RE4HRE, RE4HR2)2006–2008
CITROËN C5 III Break (RW_) 1.6 HDi 110 (RW9HZC)2008–2010
CITROËN C5 III Break (RW_) 2.0 HDi2008–2014
CITROËN C5 III Break (RW_) 2.0 HDi 1402009–2015
CITROËN C5 III Break (RW_) 2.2 HDi 2002010–2015
CITROËN C5 III (RD_) 1.6 HDi 110 (RD9HZC)2008–2010
CITROËN C5 III (RD_) 2.0 HDi (RDRHD8, RDRHDJ, RDRHR8, RDRHRJ)2008–2014
CITROËN C5 III (RD_) 2.0 HDi 140 (RDRHF8, RDRHFA, RDRHA8, RDRHAJ)2008–2015
CITROËN C5 III (RD_) 2.2 HDi 200 (RD4HLA)2010–2015
CITROËN C5 II (RC_) 1.6 HDi (RC8HZB)2004–2008
CITROËN C5 II (RC_) 1.8 16V (RC6FZB)2004–2005
CITROËN C5 II (RC_) 2.0 HDi (RCRHRH)2004–2008
CITROËN C5 II (RC_) 2.2 HDi (RC4HXE)2004–2008
CITROËN C5 II (RC_) 2.2 HDi2006–2008

And 439 more versions. Search by registration number in the webshop.
