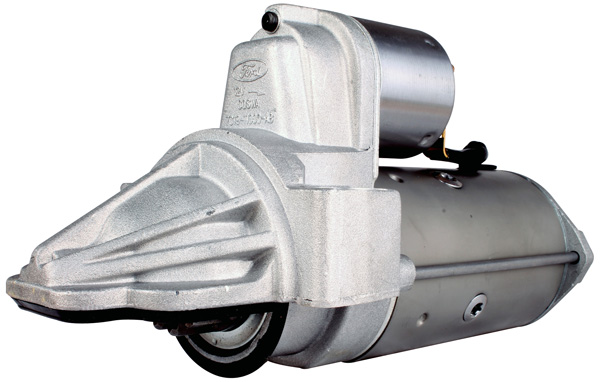

Genuine PSA · Starter motor / Starter
5802AS
Starter motor / Starter
Starter motor / Starter 5802AS is a genuine PSA part. It fits 145 vehicle versions, including CITROËN JUMPER; FIAT DUCATO; FORD TOURNEO and TRANSIT. Key specifications: number of threaded holes 0, number of mounting holes 2 and number of teeth 12.
| Brand | PSA (genuine) |
|---|---|
| Number of threaded holes | 0 |
| Number of mounting holes | 2 |
| Number of teeth | 12 |
| Mounting angle [degrees] | 90 ° |
| Direction of rotation | Clockwise direction of rotation |
| Flange diameter [mm] | 89 mm |
| Hole diameter 2 [mm] | 10,5 mm |
| Hole diameter [mm] | 10,5 mm |
| Angle of the mouth opening [degrees] | 90 ° |
| Angle of fixing drill hole [degrees] | 90 ° |
| Clamp | 30 |
| Clamp | 50 |
| Length [mm] | 255 mm |
| Position / rank | right ° |
| Spacer starting position [mm] | 35,6 mm |
| Voltage [V] | 12 V |
| Entry-level model | Without a top bearing |
| Starter motor power [kW] | 2 kW |
List price
€656.80 excl. VAT
Log in to the webshop to see your own net price and the current delivery time.
Cross-reference numbers
| 9658144780 | FIAT |
| 1372739 | FORD |
| 1385378 | FORD |
| 1574338 | FORD |
| 1669558 | FORD |
| 1709189 | FORD |
| 5802FC | CITROËN |
| 6C1T11000AB | FORD |
| 6C1T11000AC | FORD |
| 6C1T11000AD | FORD |
| 6C1T11000AE | FORD |
| 6C1T11000AF | FORD |
All 40 cross-reference numbers
| 95681447 | FIAT |
| LR010547 | LAND ROVER |
| LR025840 | LAND ROVER |
| NAD500270 | FORD |
| 1740947 | FORD |
| 7H1211002AA | FORD |
| 7H1211002AB | FORD |
| 7H1211002AC | FORD |
| AC1T11000AA | FORD |
| CC1T11000AA | FORD |
| CC1T11000AB | FORD |
| K9658144780 | FIAT |
| 1748650 | FORD |
| 1912881 | FORD |
| 675092580 | PEUGEOT |
| 6C1T11000AA | FORD |
| 9675092580 | CITROËN |
| BK3T11000DB | FORD |
| K9675092580 | FIAT |
| RE6C1T11000AE | FORD |
| 1375378 | FORD |
| 1606413580 | PEUGEOT |
| 71789751 | FIAT |
| 7C1911000AB | FORD |
| 1638117780 | PSA |
| 1731775 | FORD |
| 2073363 | FORD |
| 2380307 | FORD |
Aftermarket alternatives
Ask us about alternatives.
Fits
| CITROËN JUMPER III Bestelwagen 2.2 HDi 100 | 2006–2012 |
| CITROËN JUMPER III Bestelwagen 2.2 HDi 120 | 2006–2016 |
| CITROËN JUMPER III Bestelwagen 2.2 HDi 110 | 2011–2020 |
| CITROËN JUMPER III Bestelwagen 2.2 HDi 130 | 2011–2016 |
| CITROËN JUMPER III Bestelwagen 2.2 HDi 150 | 2011–2016 |
| CITROËN JUMPER III Bestelwagen 2.2 HDi 130 4x4 | 2012–2016 |
| CITROËN JUMPER III Bus 2.2 HDi 100 | 2006–2013 |
| CITROËN JUMPER III Bus 2.2 HDi 120 | 2006–2016 |
| CITROËN JUMPER III Bus 2.2 HDi 110 | 2011–2020 |
| CITROËN JUMPER III Bus 2.2 HDi 130 | 2011–2016 |
| CITROËN JUMPER III Bus 2.2 HDi 150 | 2011–2016 |
| CITROËN JUMPER III Open laadbak/ Chassis 2.2 HDi 100 | 2006–2013 |
All 145 vehicles
| CITROËN JUMPER III Open laadbak/ Chassis 2.2 HDi 120 | 2006–2016 |
| CITROËN JUMPER III Open laadbak/ Chassis 2.2 HDi 130 | 2006–2016 |
| CITROËN JUMPER III Open laadbak/ Chassis 2.2 HDi 110 | 2011–2020 |
| CITROËN JUMPER III Open laadbak/ Chassis 2.2 HDi 150 | 2011–2016 |
| FIAT DUCATO Bestelwagen (250_) 100 Multijet 2,2 D | 2006–2011 |
| FIAT DUCATO Bus (250_) 100 Multijet 2,2 D | 2006–2011 |
| FIAT DUCATO Bus (250_) 120 Multijet 2,3 D | 2006–2013 |
| FIAT DUCATO Open laadbak/ Chassis (250_) 100 Multijet 2,2 D | 2006–2011 |
| FORD TOURNEO CUSTOM V362 Bus (F3) 2.2 TDCi | 2012–2015 |
| FORD TOURNEO CUSTOM V362 Bus (F3) 2.2 TDCi | 2012–2015 |
| FORD TOURNEO CUSTOM V362 Bus (F3) 2.2 TDCi | 2012–2015 |
| FORD TRANSIT Bestelwagen (FA_ _) 2.2 TDCi | 2006–2014 |
| FORD TRANSIT Bestelwagen (FA_ _) 2.2 TDCi | 2006–2014 |
| FORD TRANSIT Bestelwagen (FA_ _) 2.2 TDCi | 2006–2014 |
| FORD TRANSIT Bestelwagen (FA_ _) 2.4 TDCi RWD | 2006–2014 |
| FORD TRANSIT Bestelwagen (FA_ _) 2.4 TDCi RWD | 2006–2014 |
| FORD TRANSIT Bestelwagen (FA_ _) 2.4 TDCi RWD | 2006–2014 |
| FORD TRANSIT Bestelwagen (FA_ _) 2.4 TDCi 4x4 | 2006–2014 |
| FORD TRANSIT Bestelwagen (FA_ _) 3.2 TDCi RWD | 2007–2014 |
| FORD TRANSIT Bestelwagen (FA_ _) 2.2 TDCi | 2007–2014 |
| FORD TRANSIT Bestelwagen (FA_ _) 2.2 TDCi | 2008–2014 |
| FORD TRANSIT Bestelwagen (FA_ _) 2.2 TDCi RWD | 2011–2014 |
| FORD TRANSIT Bestelwagen (FA_ _) 2.2 TDCi | 2011–2014 |
| FORD TRANSIT Bestelwagen (FA_ _) 2.2 TDCi | 2011–2014 |
| FORD TRANSIT Bestelwagen (FA_ _) 2.2 TDCi 4x4 | 2011–2014 |
| FORD TRANSIT Bestelwagen (FA_ _) 2.2 TDCi RWD | 2011–2014 |
| FORD TRANSIT Bestelwagen (FA_ _) 2.2 TDCi RWD | 2011–2014 |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.2 TDCi | 2006–2014 |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.2 TDCi | 2006–2014 |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.2 TDCi | 2006–2014 |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.4 TDCi | 2006–2014 |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.4 TDCi | 2006–2014 |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.4 TDCi | 2006–2014 |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.4 TDCi 4x4 | 2006–2014 |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.2 TDCi | 2007–2014 |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 3.2 TDCi | 2008–2014 |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.2 TDCi | 2008–2014 |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.2 TDCi RWD | 2011–2014 |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.2 TDCi RWD | 2011–2014 |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.2 TDCi | 2011–2014 |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.2 TDCi | 2011–2014 |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.2 TDCi RWD | 2011–2014 |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.2 TDCi RWD | 2011–2014 |
| FORD TRANSIT CUSTOM V362 Bestelwagen (FY, FZ) 2.2 TDCi | 2012–2016 |
| FORD TRANSIT CUSTOM V362 Bestelwagen (FY, FZ) 2.2 TDCi | 2012–2016 |
| FORD TRANSIT CUSTOM V362 Bestelwagen (FY, FZ) 2.2 TDCi | 2012–2015 |
| FORD TRANSIT CUSTOM V362 Bus (F3) 2.2 TDCi | 2012–2016 |
| FORD TRANSIT CUSTOM V362 Bus (F3) 2.2 TDCi | 2012–2015 |
| FORD TRANSIT CUSTOM V362 Bus (F3) 2.2 TDCi | 2012–2015 |
| FORD TRANSIT Open laadbak/ Chassis (FM_ _, FN_ _, FF_ _) 2.2 TDCi | 2006–2014 |
| FORD TRANSIT Open laadbak/ Chassis (FM_ _, FN_ _, FF_ _) 2.2 TDCi | 2006–2014 |
| FORD TRANSIT Open laadbak/ Chassis (FM_ _, FN_ _, FF_ _) 2.2 TDCi | 2006–2014 |
| FORD TRANSIT Open laadbak/ Chassis (FM_ _, FN_ _, FF_ _) 2.4 TDCi RWD | 2006–2014 |
| FORD TRANSIT Open laadbak/ Chassis (FM_ _, FN_ _, FF_ _) 2.4 TDCi RWD | 2006–2014 |
| FORD TRANSIT Open laadbak/ Chassis (FM_ _, FN_ _, FF_ _) 2.4 TDCi RWD | 2006–2014 |
| FORD TRANSIT Open laadbak/ Chassis (FM_ _, FN_ _, FF_ _) 2.4 TDCi 4x4 | 2006–2014 |
| FORD TRANSIT Open laadbak/ Chassis (FM_ _, FN_ _, FF_ _) 3.2 TDCi RWD | 2007–2014 |
| FORD TRANSIT Open laadbak/ Chassis (FM_ _, FN_ _, FF_ _) 2.2 TDCi | 2007–2014 |
| FORD TRANSIT Open laadbak/ Chassis (FM_ _, FN_ _, FF_ _) 2.2 TDCi | 2008–2014 |
| FORD TRANSIT Open laadbak/ Chassis (FM_ _, FN_ _, FF_ _) 2.2 TDCi | 2011–2014 |
| FORD TRANSIT Open laadbak/ Chassis (FM_ _, FN_ _, FF_ _) 2.2 TDCi | 2011–2014 |
| FORD TRANSIT Open laadbak/ Chassis (FM_ _, FN_ _, FF_ _) 2.2 TDCi RWD | 2011–2014 |
| FORD TRANSIT Open laadbak/ Chassis (FM_ _, FN_ _, FF_ _) 2.2 TDCi RWD | 2011–2014 |
| FORD TRANSIT Open laadbak/ Chassis (FM_ _, FN_ _, FF_ _) 2.2 TDCi RWD | 2011–2014 |
| FORD TRANSIT TOURNEO Bus 2.2 TDCi | 2006–2014 |
| FORD TRANSIT TOURNEO Bus 2.2 TDCi | 2006–2014 |
| FORD TRANSIT TOURNEO Bus 2.2 TDCi | 2007–2014 |
| FORD TRANSIT TOURNEO Bus 2.2 TDCi | 2008–2014 |
| FORD TRANSIT TOURNEO Bus 2.2 | 2011–2014 |
| FORD TRANSIT V363 Bestelwagen (FCD, FDD) 2.2 TDCi | 2013–2018 |
| FORD TRANSIT V363 Bestelwagen (FCD, FDD) 2.2 TDCi | 2013–2018 |
| FORD TRANSIT V363 Bestelwagen (FCD, FDD) 2.2 TDCi | 2013–2018 |
| FORD TRANSIT V363 Bestelwagen (FCD, FDD) 2.2 TDCi RWD | 2013–2018 |
| FORD TRANSIT V363 Bestelwagen (FCD, FDD) 2.2 TDCi RWD | 2013–2018 |
| FORD TRANSIT V363 Bestelwagen (FCD, FDD) 2.2 TDCi RWD | 2013–2018 |
| FORD TRANSIT V363 Bus (FAD, FBD) 2.2 TDCi | 2013–2018 |
| FORD TRANSIT V363 Bus (FAD, FBD) 2.2 TDCi | 2013–2018 |
| FORD TRANSIT V363 Bus (FAD, FBD) 2.2 TDCi RWD | 2013–2018 |
| FORD TRANSIT V363 Bus (FAD, FBD) 2.2 TDCi RWD | 2013–2018 |
| FORD TRANSIT V363 Bus (FAD, FBD) 2.2 TDCi RWD | 2013–2018 |
| FORD TRANSIT V363 Bus (FAD, FBD) 2.2 TDCi | 2014–2018 |
| FORD TRANSIT V363 Open laadbak/ Chassis (FED, FFD) 2.2 TDCi | 2013–2018 |
| FORD TRANSIT V363 Open laadbak/ Chassis (FED, FFD) 2.2 TDCi | 2013–2018 |
| FORD TRANSIT V363 Open laadbak/ Chassis (FED, FFD) 2.2 TDCi | 2013–2018 |
| FORD TRANSIT V363 Open laadbak/ Chassis (FED, FFD) 2.2 TDCi RWD | 2013–2018 |
| FORD TRANSIT V363 Open laadbak/ Chassis (FED, FFD) 2.2 TDCi RWD | 2013–2018 |
| FORD TRANSIT V363 Open laadbak/ Chassis (FED, FFD) 2.2 TDCi RWD | 2013–2018 |
| LAND ROVER DEFENDER Cabrio (L316) 2.4 Td4 4x4 (L317) | 2007–2016 |
And 45 more versions. Search by registration number in the webshop.
