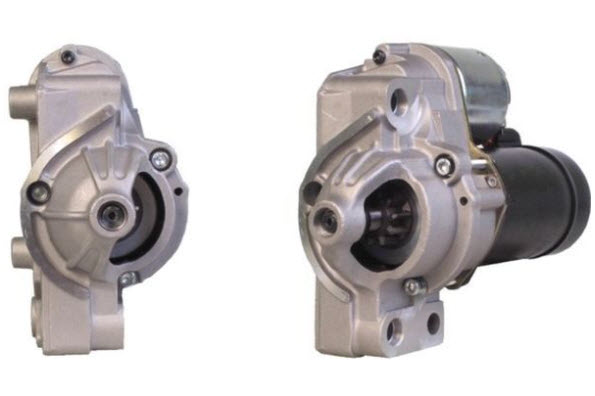

Genuine PSA · Starter motor / Starter
5802CZ
Starter motor / Starter
Starter motor / Starter 5802CZ is a genuine PSA part. It fits 41 vehicle versions, including CITROËN C5, C6 and C8; FIAT ULYSSE; LANCIA PHEDRA. Key specifications: number of threaded holes 0, number of mounting holes 3 and number of teeth 10. Besides the genuine part, we supply one alternative from RUIJGROK.
| Brand | PSA (genuine) |
|---|---|
| Number of threaded holes | 0 |
| Number of mounting holes | 3 |
| Number of teeth | 10 |
| Mounting angle [degrees] | 11 ° |
| Bore diameter 3 [mm] | 11,5 mm |
| Direction of rotation | Clockwise direction of rotation |
| Flange diameter [mm] | 112 mm |
| Hole diameter 2 [mm] | 11,5 mm |
| Hole diameter [mm] | 11,5 mm |
| Angle of the mouth opening [degrees] | 26 ° |
| Angle of fixing drill hole [degrees] | 11 ° |
| Clamp | 30 |
| Clamp | 50 |
| Length [mm] | 205 mm |
| Position / rank | right ° |
| Spacer starting position [mm] | 14 mm |
| Voltage [V] | 12 V |
| Entry-level model | Without a top bearing |
| Starter motor power [kW] | 1,3 kW |
List price
€315.86 excl. VAT
Log in to the webshop to see your own net price and the current delivery time.
Cross-reference numbers
| 5802W6 | CITROËN |
| 5802X7 | CITROËN |
| 5802X8 | CITROËN |
| 9635501280 | FIAT |
| 820053977 | RENAULT |
| K9635501280 | FIAT |
| 1638127580 | PSA |
| 71723464 | FIAT |
| 7711134529 | RENAULT |
| 9657391280 | CITROËN |
Aftermarket alternatives
| RUIJGROK | 1176407 |
Fits
| CITROËN C5 I Break (DE_) 3.0 V6 (DEXFXC, DEXFXF) | 2001–2004 |
| CITROËN C5 I Break (DE_) 3.0 Carlsson | 2003–2004 |
| CITROËN C5 I (DC_) 3.0 V6 (DCXFXC, DCXFXF) | 2001–2004 |
| CITROËN C5 II Break (RE_) 3.0 V6 (REXFUF) | 2004–2008 |
| CITROËN C5 III Break (RW_) 3.0 V6 (RWXFVA, RWXFUA) | 2008–2010 |
| CITROËN C5 III (RD_) 3.0 V6 (RDXFVJ) | 2008–2010 |
| CITROËN C5 II (RC_) 3.0 Carlsson HP | 2004–2008 |
| CITROËN C5 II (RC_) 3.0 V6 (RCXFUF) | 2004–2008 |
| CITROËN C6 (TD_) 3.0 V6 | 2005–2012 |
| CITROËN C8 (EA_, EB_) 3.0 V6 | 2002–present |
| CITROËN C8 Van (EA_, EB_) 3.0 (EBXFWF, EAXFWF) | 2003–2007 |
| FIAT ULYSSE (179_) 3.0 | 2002–2011 |
All 41 vehicles
| LANCIA PHEDRA (179_) 3.0 V6 (179.BXD11) | 2002–2010 |
| PEUGEOT 406 (8B) 3.0 V6 | 2000–2004 |
| PEUGEOT 406 Break (8E/F) 3.0 V6 | 2000–2004 |
| PEUGEOT 406 Coupé (8C) 3.0 V6 | 2000–2004 |
| PEUGEOT 407 (6D_) 3.0 (6DXFVJ) | 2004–2010 |
| PEUGEOT 407 Coupé (6C_) 3.0 V6 | 2005–present |
| PEUGEOT 407 SW (6E_, 6D_) 3.0 | 2004–2010 |
| PEUGEOT 607 (9D, 9U) 3.0 V6 24V | 2000–2004 |
| PEUGEOT 607 (9D, 9U) 3.0 V6 24V | 2004–2011 |
| PEUGEOT 807 (EB_) 3.0 V6 | 2002–present |
| RENAULT AVANTIME (DE0_) 3.0 V6 (DE04, DE0T) | 2001–2003 |
| RENAULT CLIO II (BB_, CB_) 3.0 V6 Sport (CB1A) | 2000–2002 |
| RENAULT CLIO II (BB_, CB_) 3.0 V6 Sport (CB1H, CB1U, CB2S) | 2002–2005 |
| RENAULT LAGUNA I (B56_, 556_) 3.0 24V (B56V) | 1997–2001 |
| RENAULT LAGUNA I Grandtour (K56_) 3.0 24V (K56V) | 1997–2001 |
| RENAULT LAGUNA II (BG0/1_) 2.9 V6 24V | 2001–2007 |
| RENAULT LAGUNA II (BG0/1_) 3.0 V6 24V (BG01, BG02, BG0D, BG0Y) | 2001–2007 |
| RENAULT LAGUNA II (BG0/1_) 2.0 dCi (BG1T) | 2005–2006 |
| RENAULT LAGUNA II (BG0/1_) 2.0 dCi (BG14, BG1S) | 2006–2007 |
| RENAULT LAGUNA II Grandtour (KG0/1_) 3.0 V6 24V (KG0D, KG01) | 2001–2007 |
| RENAULT LAGUNA II Grandtour (KG0/1_) 2.9 V6 24V | 2003–2007 |
| RENAULT LAGUNA II Grandtour (KG0/1_) 2.0 dCi (KG1T) | 2005–2006 |
| RENAULT LAGUNA II Grandtour (KG0/1_) 2.0 dCi (KG1S) | 2006–2007 |
| Niet in TecDoc: KType 121790 | |
| Niet in TecDoc: KType 121791 | |
| Niet in TecDoc: KType 121792 | |
| Niet in TecDoc: KType 130819 | |
| Niet in TecDoc: KType 58205 | |
| Niet in TecDoc: KType 58206 |
Ruijgrok Automotive has been supplying genuine PSA parts and aftermarket alternatives to garages and businesses since 1986.
