Genuine PSA · Starter motor / Starter

5802EY

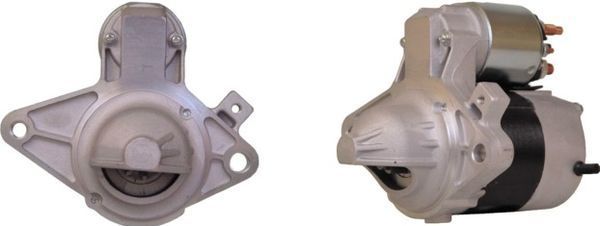

Starter motor / Starter

Starter motor / Starter 5802EY is a genuine PSA part. It fits 9 vehicle versions, including CITROËN C1; PEUGEOT 107 and 108; TOYOTA AYGO. Key specifications: number of threaded holes 1, number of mounting holes 1 and number of teeth 9. Besides the genuine part, we supply one alternative from RUIJGROK.

Specifications

Brand	PSA (genuine)
Number of threaded holes	1
Number of mounting holes	1
Number of teeth	9
Mounting angle [degrees]	80 °
Direction of rotation	Clockwise direction of rotation
Flange diameter [mm]	74 mm
Hole diameter 2 [mm]	11 mm
Angle of the mouth opening [degrees]	100 °
Angle of fixing drill hole [degrees]	80 °
Clamp	50
Clamp	30
Length [mm]	210 mm
Position / rank	links °
Spacer starting position [mm]	25 mm
Voltage [V]	12 V
Entry-level model	Without a top bearing
Starter motor power [kW]	1,1 kW
