Genuine PSA · Brake disc
9804605780
Brake disc

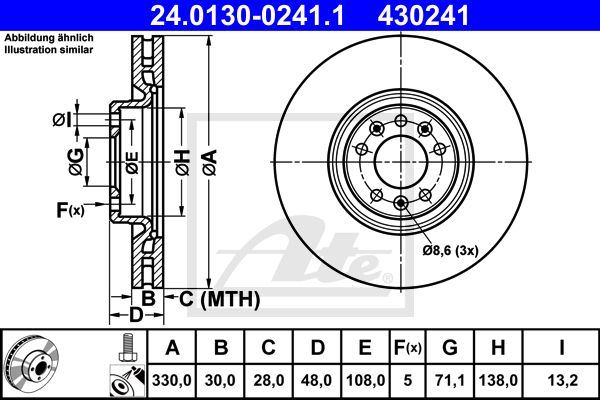

Brake disc 9804605780 is a genuine PSA part. It fits 237 vehicle versions, including CITROËN C5; DS DS and N°4; OPEL ASTRA and GRANDLAND. Key specifications: borehole diameter up to [mm] 13,2 mm, outer diameter [mm] 330 mm and centring diameter [mm] 71,1 mm. Brake discs are replaced per axle, left and right together, usually with new brake pads.
| Brand | PSA (genuine) |
|---|---|
| Number of holes | 5 |
| Borehole diameter up to [mm] | 13,2 mm |
| Outer diameter [mm] | 330 mm |
| Centring diameter [mm] | 71,1 mm |
| Height [mm] | 48 mm |
| Minimum thickness [mm] | 28 mm |
| Area | Coated |
| Brake disc thickness [mm] | 30 mm |
| Brake disc type | Ventilated |
| Wheel bolt pitch [mm] | 108 mm |
| Processing | High carbon |
| Complies with the ECE standard | ECE-R90 |
List price
€197.91 excl. VAT In stock
Log in to the webshop to see your own net price and the current delivery time.
Cross-reference numbers
| 1642761480 | PEUGEOT |
| 1686718680 | PEUGEOT |
| 9818381680 | DS |
| 9840733680 | PSA |
Aftermarket alternatives
Ask us about alternatives.
Fits
| CITROËN C5 AIRCROSS (AC_, AJ_, AR_, A4_) 1.2 PureTech 130 (ARHNSJ) | 2018–present |
| CITROËN C5 AIRCROSS (AC_, AJ_, AR_, A4_) 1.5 BlueHDi 130 (ACYHZJ, ACYHZR) | 2018–present |
| CITROËN C5 AIRCROSS (AC_, AJ_, AR_, A4_) 1.6 PureTech 180 (A45GFR) | 2018–present |
| CITROËN C5 AIRCROSS (AC_, AJ_, AR_, A4_) 2.0 BlueHDi 180 (AJEHZR) | 2018–present |
| CITROËN C5 AIRCROSS (AC_, AJ_, AR_, A4_) 1.6 THP 165 (A45GYJ) | 2019–present |
| CITROËN C5 AIRCROSS (AC_, AJ_, AR_, A4_) 1.6 THP 150 (A45GXJ) | 2019–present |
| CITROËN C5 AIRCROSS (AC_, AJ_, AR_, A4_) 1.6 Hybrid 225 (A45GFR) | 2020–present |
| CITROËN C5 AIRCROSS (AC_, AJ_, AR_, A4_) 1.6 Hybrid 180 (A4DGXR) | 2022–present |
| CITROËN C5 AIRCROSS (AC_, AJ_, AR_, A4_) 1.2 Hybrid 136 (ARHPYJ) | 2023–present |
| CITROËN C5 AIRCROSS (AC_, AJ_, AR_, A4_) 1.2 Hybrid 145 | 2025–present |
| CITROËN C5 AIRCROSS II 1.2 Hybrid 145 (KAHPY1) | 2025–present |
| CITROËN C5 X (ND_, NC_) Hybrid 225 (NDDGYP) | 2021–present |
All 237 vehicles
| CITROËN C5 X (ND_, NC_) PureTech 130 (NCHNSP) | 2021–present |
| CITROËN C5 X (ND_, NC_) PureTech 180 (ND5GFP) | 2021–present |
| CITROËN C5 X (ND_, NC_) Hybrid 180 (NDDGYP) | 2023–present |
| CITROËN C5 X (ND_, NC_) 1.2 Hybrid 136 (NCHPYP) | 2023–present |
| CITROËN C5 X (ND_, NC_) 1.2 Hybrid 145 | 2025–present |
| DS DS 4 II (FR_, FB_, F3_, FP_, F4_) BlueHDi 130 (FBYHZT) | 2021–2025 |
| DS DS 4 II (FR_, FB_, F3_, FP_, F4_) E-TENSE 225 (F3DGZT, F4DGYT) | 2021–2025 |
| DS DS 4 II (FR_, FB_, F3_, FP_, F4_) PureTech 130 | 2021–2024 |
| DS DS 4 II (FR_, FB_, F3_, FP_, F4_) PureTech 180 (F35GFT) | 2021–2022 |
| DS DS 4 II (FR_, FB_, F3_, FP_, F4_) PureTech 225 (FP5GGT) | 2021–2022 |
| DS DS 4 II (FR_, FB_, F3_, FP_, F4_) Hybrid 136 (FPHPYC) | 2024–2025 |
| DS DS 4 II (FR_, FB_, F3_, FP_, F4_) Hybrid 145 | 2025–2025 |
| DS DS 7 Crossback (J4_, JR_, JC_) 1.5 BlueHDi 130 (JCYHZJ, JCYHZR) | 2017–present |
| DS DS 7 Crossback (J4_, JR_, JC_) 1.6 PureTech 225 (J45GCR, J45GGR) | 2017–2022 |
| DS DS 7 Crossback (J4_, JR_, JC_) 2.0 BlueHDi 180 (JJEHZR) | 2017–2020 |
| DS DS 7 Crossback (J4_, JR_, JC_) 1.6 PureTech 180 (J45GFR) | 2018–present |
| DS DS 7 Crossback (J4_, JR_, JC_) PureTech 130 (JRHNSU) | 2018–2022 |
| DS DS 7 Crossback (J4_, JR_, JC_) E-TENSE 4x4 (J45GBU) | 2019–present |
| DS DS 7 Crossback (J4_, JR_, JC_) E-TENSE 225 (J4DGZU, J45GQU) | 2020–present |
| DS DS 7 (J4_, JC_) BlueHDi 130 (JCYHZU) | 2022–present |
| DS DS 7 (J4_, JC_) E-TENSE 225 (J4DGZU) | 2022–present |
| DS DS 7 (J4_, JC_) E-TENSE 4x4 300 (J45GBU) | 2022–present |
| DS DS 7 (J4_, JC_) E-TENSE 4x4 360 (J45GBT) | 2022–present |
| DS DS 7 (J4_, JC_) PureTech 180 (J45GFU) | 2022–present |
| DS DS 7 (J4_, JC_) PureTech 225 (J45GGU) | 2022–present |
| DS DS 9 (X2_) 1.6 E-TENSE 225 (X2DGZR) | 2020–2022 |
| DS DS 9 (X2_) 1.6 PureTech 225 (X25GGR) | 2020–2022 |
| DS DS 9 (X2_) E-TENSE 360 4x4 (X25GBR) | 2021–2024 |
| DS DS 9 (X2_) 1.6 E-TENSE 250 (X2DGYR) | 2022–2024 |
| DS N°4 1.2 Hybrid 145 | 2025–present |
| DS N°4 1.6 Plug-in-Hybrid 225 | 2025–present |
| DS N°4 E-TENSE 213 | 2025–present |
| DS N°4 1.5 BlueHDi 130 (FCYHZ) | 2025–present |
| DS N°4 1.6 Plug-in-Hybrid 240 | 2026–present |
| OPEL ASTRA L (OV5) 1.2 (FPHNPJ) | 2021–present |
| OPEL ASTRA L (OV5) 1.2 (FPHNSL, FPHNSR) | 2021–present |
| OPEL ASTRA L (OV5) 1.5 Turbo D (FBYHZT, FBYHZJ) | 2021–present |
| OPEL ASTRA L (OV5) 1.6 Plug-In-Hybrid (F3DGXT) | 2021–present |
| OPEL ASTRA L (OV5) 1.6 Plug-In-Hybrid (F3DGYT) | 2023–present |
| OPEL ASTRA L (OV5) Astra-e (F3ZKWZ) | 2023–present |
| OPEL ASTRA L (OV5) 1.2 MHEV (FPHPY) | 2023–present |
| OPEL ASTRA L (OV5) 1.2 Hybrid | 2025–present |
| OPEL ASTRA L (OV5) 1.6 Plug-In-Hybrid | 2025–present |
| OPEL ASTRA L Sports Tourer (OV5) 1.2 (FRHNPJ) | 2021–present |
| OPEL ASTRA L Sports Tourer (OV5) 1.2 (FRHNSL, FRHNSR) | 2021–present |
| OPEL ASTRA L Sports Tourer (OV5) 1.5 CDTi (FCYHZT, FCYHZJ) | 2021–present |
| OPEL ASTRA L Sports Tourer (OV5) 1.6 Plug-In Hybrid (F4DGXT) | 2021–present |
| OPEL ASTRA L Sports Tourer (OV5) 1.6 Plug-In Hybrid (F4DGZT, F4DGYT) | 2023–present |
| OPEL ASTRA L Sports Tourer (OV5) Astra-e (F4ZKWZ) | 2023–present |
| OPEL ASTRA L Sports Tourer (OV5) 1.2 MHEV (FPHPY) | 2023–present |
| OPEL ASTRA L Sports Tourer (OV5) 1.2 Hybrid | 2025–present |
| OPEL ASTRA L Sports Tourer (OV5) 1.6 Plug-In Hybrid | 2025–present |
| OPEL GRANDLAND / GRANDLAND X (A18, P1UO) 1.2 | 2017–2021 |
| OPEL GRANDLAND / GRANDLAND X (A18, P1UO) 1.2 (75) | 2017–present |
| OPEL GRANDLAND / GRANDLAND X (A18, P1UO) 1.6 Turbo D (75) | 2017–2021 |
| OPEL GRANDLAND / GRANDLAND X (A18, P1UO) 2.0 D (75) | 2017–2021 |
| OPEL GRANDLAND / GRANDLAND X (A18, P1UO) 1.5 Turbo D (75) | 2018–present |
| OPEL GRANDLAND / GRANDLAND X (A18, P1UO) 1.5 Turbo D (75) | 2018–2021 |
| OPEL GRANDLAND / GRANDLAND X (A18, P1UO) 1.6 Turbo (75) | 2018–2021 |
| OPEL GRANDLAND / GRANDLAND X (A18, P1UO) 1.6 Turbo Hybrid4 | 2019–present |
| OPEL GRANDLAND / GRANDLAND X (A18, P1UO) 1.6 Turbo (75) | 2019–2021 |
| OPEL GRANDLAND / GRANDLAND X (A18, P1UO) 1.6 Turbo Hybrid | 2019–present |
| OPEL GRANDLAND / GRANDLAND X (A18, P1UO) 1.2 Turbo Hybrid (75) | 2024–present |
| OPEL GRANDLAND X Van 2.0 CDTI (75) | 2017–2021 |
| OPEL GRANDLAND X Van 1.2 (75) | 2018–2021 |
| OPEL GRANDLAND X Van 1.5 (75) | 2018–2021 |
| PEUGEOT 3008 III (KA_, KB_, KC_) Hybrid 136 (KAHPYE) | 2023–present |
| PEUGEOT 3008 III (KA_, KB_, KC_) Hybrid 145 (KAHPY1) | 2025–present |
| PEUGEOT 3008 II SUV (MC_, MR_, MJ_, M4_) 1.2 THP/ PureTech 130 (MRHNSM, MRHNSU, MRHNSJ, MRHNYW,... | 2016–present |
| PEUGEOT 3008 II SUV (MC_, MR_, MJ_, M4_) 1.6 BlueHDi 120 | 2016–2019 |
| PEUGEOT 3008 II SUV (MC_, MR_, MJ_, M4_) 1.6 THP 165 (M45GYW, M45GZW, M45GYV) | 2016–present |
| PEUGEOT 3008 II SUV (MC_, MR_, MJ_, M4_) 2.0 BlueHDi 150 (MJAHXH, MJAHXV, MJAHXG, MJAHSH, MJAHRH,... | 2016–2020 |
| PEUGEOT 3008 II SUV (MC_, MR_, MJ_, M4_) 2.0 BlueHDi 180 | 2016–present |
| PEUGEOT 3008 II SUV (MC_, MR_, MJ_, M4_) 1.6 BlueHDi 100 | 2016–2019 |
| PEUGEOT 3008 II SUV (MC_, MR_, MJ_, M4_) 1.6 BlueHDi 115 (MCBHXW, MCBHYB) | 2016–2019 |
| PEUGEOT 3008 II SUV (MC_, MR_, MJ_, M4_) 2.0 BlueHDi 136 | 2016–present |
| PEUGEOT 3008 II SUV (MC_, MR_, MJ_, M4_) 2.0 BlueHDi 180 | 2018–present |
| PEUGEOT 3008 II SUV (MC_, MR_, MJ_, M4_) 1.5 BlueHDi 130 | 2018–present |
| PEUGEOT 3008 II SUV (MC_, MR_, MJ_, M4_) 1.6 PureTech 180 (M45GFR, M45GFU) | 2018–present |
| PEUGEOT 3008 II SUV (MC_, MR_, MJ_, M4_) Hybrid | 2019–present |
| PEUGEOT 3008 II SUV (MC_, MR_, MJ_, M4_) Hybrid4 (M45GBU) | 2019–present |
| PEUGEOT 3008 II SUV (MC_, MR_, MJ_, M4_) Hybrid 180 (M4DGLU) | 2022–present |
| PEUGEOT 3008 II SUV (MC_, MR_, MJ_, M4_) 1.2 Hybrid 136 (MRHPYE) | 2023–2023 |
| PEUGEOT 3008 Van (MR_, MC_, MJ_) PureTech 130 (MRHNYH) | 2016–present |
| PEUGEOT 3008 Van (MR_, MC_, MJ_) BlueHDi 180 (MJEHZR) | 2018–present |
| PEUGEOT 3008 Van (MR_, MC_, MJ_) BlueHDi 130 (MCYHZB) | 2018–present |
| PEUGEOT 308 III (FB_, FH_, FP_, F3_, FM_) BlueHDi 130 (FBYHZL, FBYHZT) | 2021–present |
| PEUGEOT 308 III (FB_, FH_, FP_, F3_, FM_) Hybrid 180 (F3DGXT, F3DGMH) | 2021–present |
And 137 more versions. Search by registration number in the webshop.
