Genuine PSA · Throttle body
9842632980

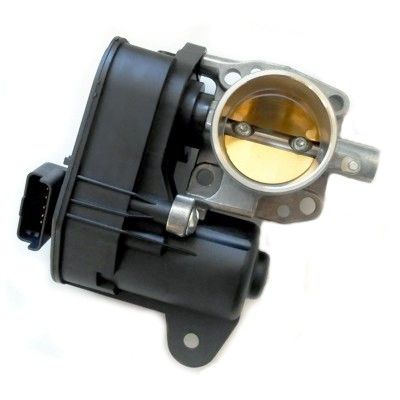

Throttle body
Throttle body 9842632980 is a genuine PSA part. It fits 46 vehicle versions, including CITROËN C1, C3 and C4; DS DS; OPEL CORSA and CROSSLAND. Key specifications: number of contacts 6 -polig, further articles / further information 2 Non-vacuum bypass and further articles / further information 2 With sensor.
| Brand | PSA (genuine) |
|---|---|
| Number of contacts | 6 -polig |
| Further articles / Further information 2 | Controller / Software still needs to be programmed/updated |
| Further articles / Further information 2 | Non-vacuum bypass |
| Further articles / Further information 2 | With sensor |
| Width [mm] | 134 mm |
| Connector housing shape | rectangular |
| Height [mm] | 68 mm |
| Length [mm] | 142 mm |
| Materials | Plastic |
| Materials | Aluminium |
| Installation instructions | Screw connection |
| Voltage [V] | 5 V |
| Type of cooling | Air-cooled |
| Outlet diameter [mm] | 40 mm |
| Exhaust diameter [mm] | 48 mm |
| Method | Electric |
List price
€525.47 excl. VAT In stock
Log in to the webshop to see your own net price and the current delivery time.
Cross-reference numbers
| 3639504 | OPEL |
| 9673622380 | CITROËN |
| 9673622380 | superseded by this number |
Aftermarket alternatives
Ask us about alternatives.
Fits
| CITROËN C1 II (PA_, PS_) 1.2 VTi 82 | 2014–2018 |
| CITROËN C3 AIRCROSS II (2R_, 2C_) 1.2 PureTech 82 (2RHMRC, 2RHMZB) | 2017–present |
| CITROËN C3 AIRCROSS II Van (2R_, 2C_) PureTech 82 | 2019–present |
| CITROËN C3 III (SX) 1.2 VTi 68 | 2016–present |
| CITROËN C3 III (SX) 1.2 VTi 82 | 2016–present |
| CITROËN C3 III (SX) 1.2 PureTech 82 | 2018–present |
| CITROËN C3 III (SX) 1.2 PureTech 82 LPG | 2018–present |
| CITROËN C3 III Van (SX_, SY_) 1.2 VTi | 2016–present |
| CITROËN C3 III Van (SX_, SY_) PureTech 82 | 2019–present |
| CITROËN C3 II (SC_) 1.2 VTi 82 | 2012–2016 |
| CITROËN C3 II (SC_) 1.0 VTi 68 | 2012–2016 |
| CITROËN C3 ORIGIN III (SX) 1.2 PURETECH 82 (SXHMRV) | 2024–present |
All 46 vehicles
| CITROËN C4 CACTUS 1.2 VTi 75 / PureTech 75 | 2014–present |
| CITROËN C4 CACTUS 1.2 VTi 82 | 2014–present |
| CITROËN C4 CACTUS Van (0B_, 0P_) PureTech 82 | 2019–present |
| CITROËN C-ELYSEE (DD_) 1.2 VTi 72 (DDHMY0) | 2012–2017 |
| CITROËN C-ELYSEE (DD_) 1.2 VTi 82 | 2014–present |
| CITROËN C-ELYSEE (DD_) 1.2 PureTech 82 (DDHMRP) | 2018–present |
| CITROËN DS3 Cabriolet 1.2 VTi 82 | 2013–2015 |
| CITROËN DS3 (SA_) 1.2 VTi 82 | 2013–2015 |
| DS DS 3 Cabriolet (SB_) 1.2 VTi 82 | 2015–2019 |
| DS DS 3 (SA_) 1.2 VTi 82 (SAHMZ6) | 2015–2019 |
| OPEL CORSA F Bestelwagen/hatchback 1.2 (68) | 2019–present |
| OPEL CORSA F (P2JO) 1.2 (68) | 2019–present |
| OPEL CROSSLAND X / CROSSLAND (P17, P2QO) 1.2 (75) | 2017–present |
| OPEL CROSSLAND X / CROSSLAND (P17, P2QO) 1.2 LPG (75) | 2017–present |
| OPEL CROSSLAND X / CROSSLAND (P17, P2QO) 1.2 | 2019–present |
| OPEL CROSSLAND X Van 1.2 (75) | 2019–present |
| PEUGEOT 108 1.2 | 2014–present |
| PEUGEOT 2008 I (CU_) 1.2 VTi | 2013–2018 |
| PEUGEOT 2008 I (CU_) 1.2 PureTech 82 | 2018–2019 |
| PEUGEOT 208 I (CA_, CC_) 1.0 VTi | 2012–2019 |
| PEUGEOT 208 I (CA_, CC_) 1.2 VTI 82 | 2012–2019 |
| PEUGEOT 208 I (CA_, CC_) 1.2 VTi 68 / PureTech 68 | 2016–2019 |
| PEUGEOT 208 I (CA_, CC_) 1.2 PureTech 82 | 2018–2019 |
| PEUGEOT 208 II (UB_, UP_, UW_, UJ_) 1.2 PureTech 75 | 2019–present |
| PEUGEOT 208 II (UB_, UP_, UW_, UJ_) 1.2 VTi 82 | 2019–present |
| PEUGEOT 301 (DD_) 1.2 VTi 72 (DDHMY0) | 2012–present |
| PEUGEOT 301 (DD_) 1.2 VTi 82 (DDHMZ6) | 2014–present |
| PEUGEOT 301 (DD_) 1.2 PureTech 82 (DDHMRP) | 2018–present |
| PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) 1.2 VTi 72 | 2013–2021 |
| Niet in TecDoc: KType 122065 | |
| Niet in TecDoc: KType 135806 | |
| Niet in TecDoc: KType 136632 | |
| Niet in TecDoc: KType 138745 | |
| Niet in TecDoc: KType 139298 |
